S-Jet 910 LED Touch Screen Pigment Printer
The S-Jet 910 series of LED touch screen pigment inkjet printers are based on the cloud service platform, which integrates customers and manufacturers, provides end-to-end, face-to-face connected services, and leads the inkjet printer technology with “cloud services”.
Advanced Technology
Printer has advanced 32-bit ARM embedded chip structure, and runs on Linux professional operating system. Implemented with all-weather full intelligent monitoring, remote services, and upgrade capabilities. Built-in diaphragm pump and four-pump integrated design.
Stability +
Nozzle triple anti-blocking technology, using a unique agitator design, intelligent “self-awakening” function, to ensure that the pigmented ink maintains a uniform and stable suspension state, reducing the chance of sedimentation, the new ink circulation system ensures that the pigment ink also obtains the dye-type ink machine. The performance and stability of this printer have achieved remarkable results in solving the core technologies of high stability, high reliability and low cost of consumables for pigment printers expected by users.

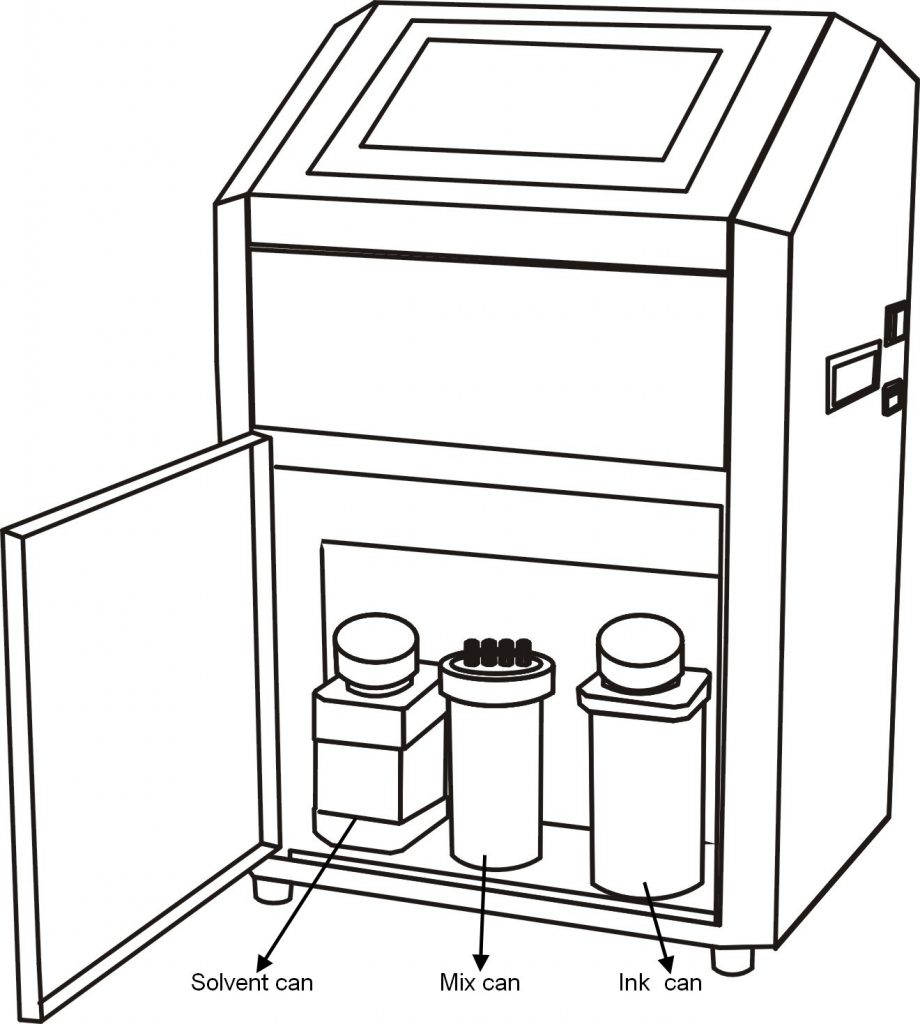

Ink System
Large-screen LED display, full graphic menu operation, powerful multi-function software technology. In terms of product performance and application, it brings a more perfect marking experience to pigment printer users. It is an epoch-making product that perfectly combines technology and performance. The products are widely used in non-contact coding of dark colour products such as cables, automobile parts, medicine, chemicals, building materials and electronics.
Easy Operation
Easy to print, design message in editor or load via USB, select and print Easy to install, move it according to your needs, even in harsh environments, thanks to robust IP55 stainless steel cabinet Easy to run, with intuitive User interface. Advanced print head automation to ensure consistent performance with minimal operation intervention. Just start printer and go.
Unrivalled Uptime
The printer has dynamic real time drop monitoring system, this ensures reliable drop charging so every printed drop is accurately placed on the substrate ensuring the head remains clean even in the most demanding environments. In addition, the 900 series employs the revolutionary clean start stop feature minimising manual cleaning of the print head.
Low Maintenance
The advanced ink system design enables the 900 series to perform longer between planned maintenance. Printer alerts operator when the ink system needs servicing.
Efficiency
The printer features a new simplified hydraulic system for low solvent consumption. This printer delivers excellent print quality on almost every kind of surface and provide consistent performance. In addition, this printer requires minimal attention by operators and maintenance staff.
Printer Specification
Printer Features
32-bit embedded ARM architecture
Printing resolution 65DPI
Up to 6 lines of print
Printing length N*1024 characters
Font widening 1 to 9 times
Printing speed 3 m/s (5×7)
Character height from 1mm to 15mm
Fully intelligent self-checking system

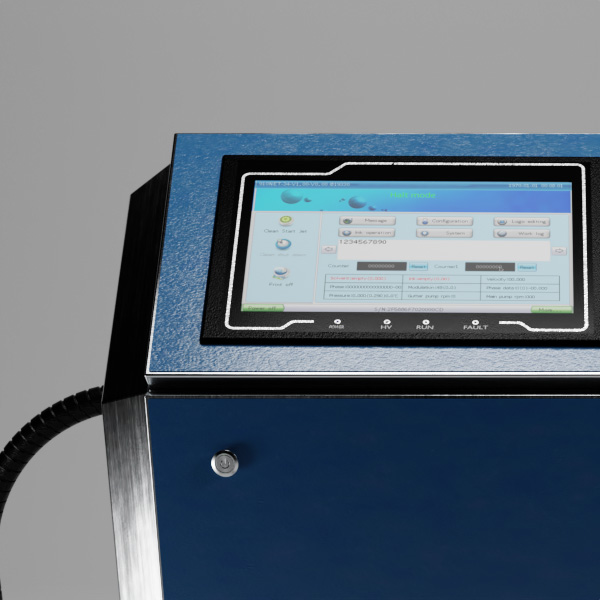

10.2” Colour LED Touch screen
Positive air to print head
Functions
Ink line automatic detection
RS232 & RS485, Ethernet, WIFI, SD Card & USB2.0
Dynamic drop control guarantees quality
Quad-core Cortex processor
1G Samsung DDR3 memory, 4G Toshiba EMMC
Large selection of pigmented inks
2 sealed intelligent level monitoring cartridges 750cc each

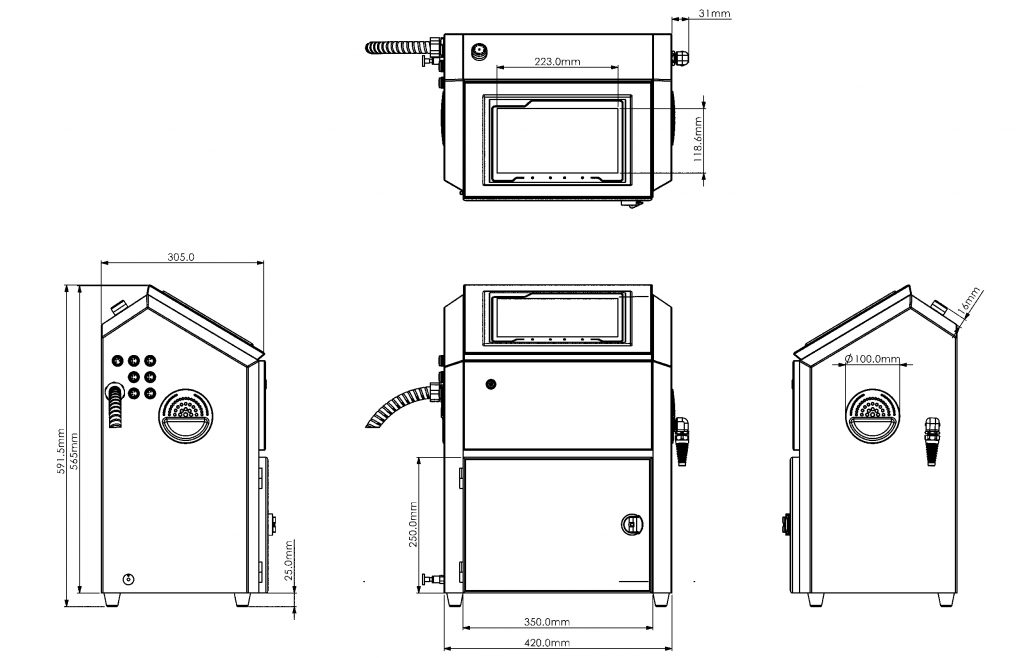

Mechanical & Electrical
Weight 22Kg
3m flexible P/H conduit
Stainless steel cabinet 304
IP65 ingress protection
No plant air required
Operating temp -10c to 45c
Humidity 10% to 95% non condensing
Electrical power 100-120 / 200-240 VAC at 50/60 Hz
Reserve multiple control outputs

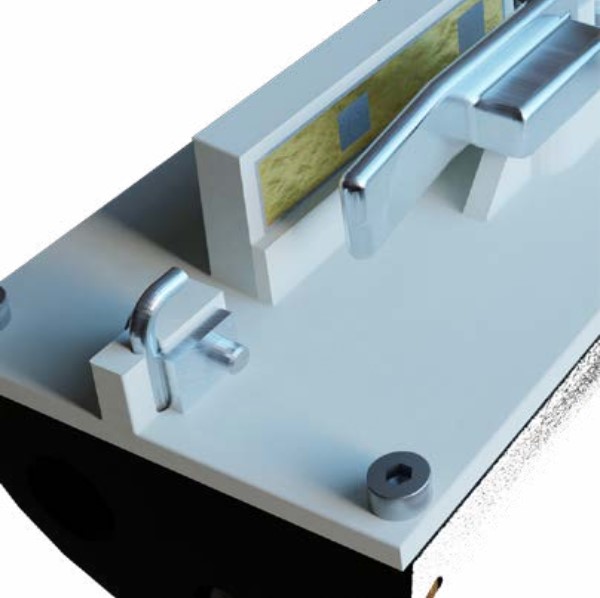

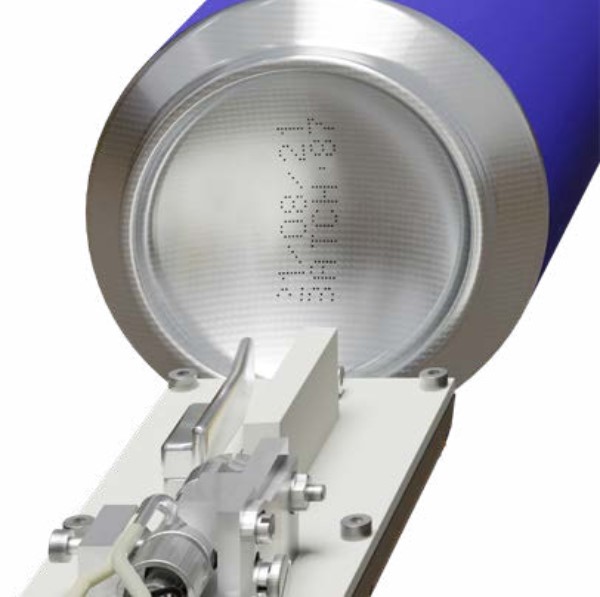

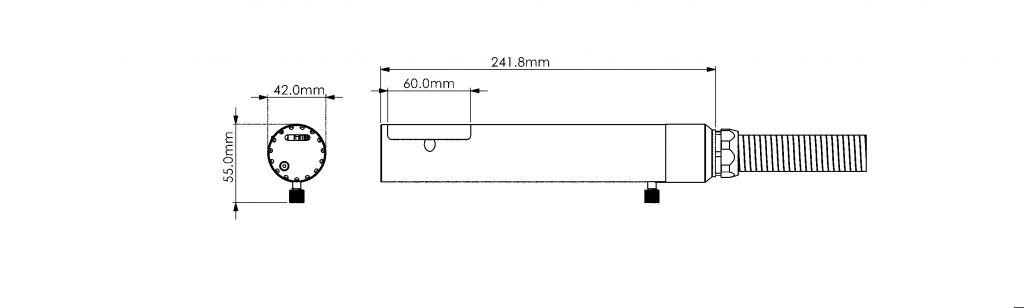

Print Head & Printer
60um Detachable Nozzle (clean in Ultrasonic dissolve)
Unique nozzle triple anti-blocking function
Drop Frequency 76.8kHz
Heated print head
Automatic nozzle cleaning
Automatic TOF and viscosity control
Continuous modulation tracking
Print head fully sealed integrated design
