The S-Jet 900 small character inkjet printer brings the innovation you deserve with the simplicity you require. The printer’s unrivalled automation allows it to be ready within minutes after starting.
ASA Technology
One button stop and start operation. Real time system automation which includes closed loop velocity control and auto-modulation tracking for optimum drop break off to always ensure consistent print quality even in the most arduous environmental conditions.

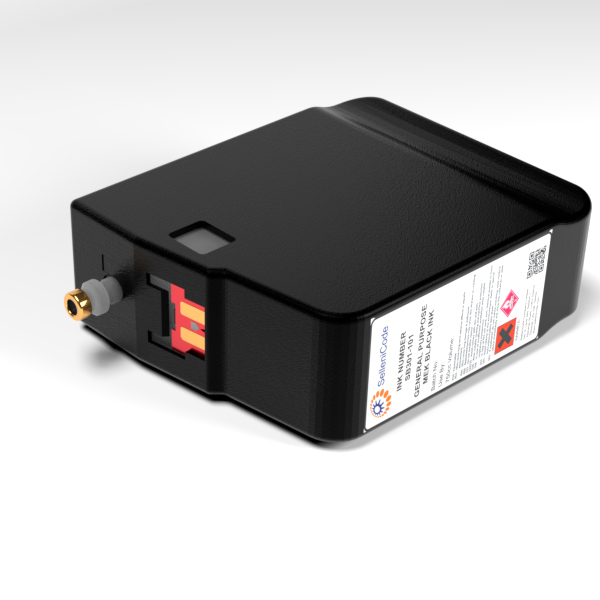

EFI Cartridge System
Error-Free fluid insertion system ensures peace of mind that printer is using correct fluid. The system also monitors cartridge level and insertions.

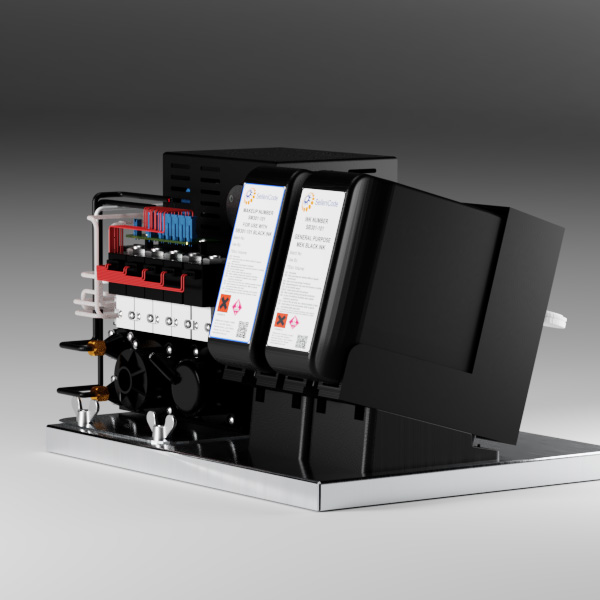

Modular Ink System Design
Modular ink system design ensures easy to service and maintain.
Easy Operation
Easy to print, design message in editor or load via USB, select and print Easy to install, move it according to your needs, even in harsh environments, thanks to robust IP55 stainless steel cabinet Easy to run, with intuitive User interface. Advanced print head automation to ensure consistent performance with minimal operation intervention. Just start printer and go.
Unrivalled Uptime
The printer has dynamic real time drop monitoring system, this ensures reliable drop charging so every printed drop is accurately placed on the substrate ensuring the head remains clean even in the most demanding environments. In addition, the 900 series employs the revolutionary clean start stop feature minimising manual cleaning of the print head.
Low Maintenance
The advanced ink system design enables the 900 series to perform longer between planned maintenance. Printer alerts operator when the ink system needs servicing.
Efficiency
The printer features a new simplified hydraulic system for low solvent consumption. This printer delivers excellent print quality on almost every kind of surface and provide consistent performance. In addition, this printer requires minimal attention by operators and maintenance staff.
Printer Specification
Printer Features
Single print head
Printing resolution 65DPI
Up to 5 lines of print
Character height from1.5mm to 10mm
Large selection of characters(European/ American Simplified Chinese & traditional & Korean
10.2” Colour Touch screen
Optional positive air to print head
Functions
Unlimited message storage
RS232 and RS485, Ethernet, SD Card and USB2.0
Dynamic drop control guarantees marking quality
Large selection of inks
2 sealed intelligent level monitoring cartridges 750cc each
Mechanical & Electrical
Weight 27Kg
3m flexible P/H conduit
Stainless steel cabinet 304
IP65 ingress protection
No plant air required
Operating temp 5c to 45c
Humidity 10% to 90% non condensing
Electrical power 100-120 / 200-240 VAC at 50/60
Print Head & Printer
60um Nozzle
Drop Frequency 76.8kHz
Heated print head
Integrated print head valves & clean start top function
Automatic TOF and viscosity control
Continuous modulation tracking
